HEFTCom2024

import typing as t
import gymnasium as gym
import enflow as ef

import numpy as np
import pandas as pd
import statsmodels.formula.api as smf
from statsmodels.iolib.smpickle import load_pickle

import folium
import plotly.graph_objs as go
from plotly.subplots import make_subplots
import plotly.io as pio
pio.renderers.default = 'notebook'

Load data

df_heftcom = pd.read_csv("data/data_heftcom2024.csv", index_col=[0, 1], parse_dates=["ref_datetime", "valid_datetime", "market_day"])
df_coords_hornsea1 = pd.read_csv("data/dwd_coords_hornsea1.csv")
df_coords_pes10 = pd.read_csv("data/dwd_coords_pes10.csv")
area_pes10 = ef.GeoMultiPolygon.from_geojson("data/pes10.geojson")

Create and plot energy system

windfarm = ef.WindFarm(name="Hornsea 1", longitude=1.79, latitude=53.90, capacity=1218)
solar_pes10 = ef.SolarPowerArea(geopolygon=area_pes10)
portfolio = ef.Portfolio(assets=[solar_pes10, windfarm])

m = folium.Map(location=[53.5, 0], zoom_start=6.4)

feature_group1 = folium.FeatureGroup(name='Wind Farm Hornsea 1')
folium.CircleMarker(location=[windfarm.latitude, windfarm.longitude], radius=10, color='blue').add_to(feature_group1)
feature_group1.add_to(m)

feature_group2 = folium.FeatureGroup(name='Solar PES10')
folium.GeoJson(solar_pes10.geopolygon.multipolygon, name='geopolygon').add_to(feature_group2)
feature_group2.add_to(m)

feature_group3 = folium.FeatureGroup(name='DWD grid points')
for lat in df_coords_hornsea1.latitude.values:
    for lon in df_coords_hornsea1.longitude.values:
        folium.CircleMarker(location=[lat, lon], radius=0.1, color='red').add_to(feature_group3)
for index, row in df_coords_pes10.iterrows():
    folium.CircleMarker(location=[row.latitude, row.longitude], radius=0.1, color='red').add_to(feature_group3)
feature_group3.add_to(m)

folium.LayerControl().add_to(m)

m

Make this Notebook Trusted to load map: File -> Trust Notebook

Create Environment

dataset = ef.Dataset(name="heftcom2024",
                     description="All data provided by the organisers of HEFTCom2024. Participants are free to use additional external data.",
                     energy_system=portfolio,
                     data={"data_heftcom2024": df_heftcom, "dwd_coords_hornsea1": df_coords_hornsea1, "dwd_coords_pes10": df_coords_pes10})

time_space = gym.spaces.Text(max_length=10, min_length=10)

state_space = gym.spaces.Dict(
    {
        "solar_power": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
        "solar_installed": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
        "solar_available": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
        "solar_forecast": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
        "wind_power": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
        "wind_forecast": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
    }
)

exogeneous_space = gym.spaces.Dict(
    {
        "dayahead_price": gym.spaces.Box(low=-np.inf, high=np.inf, shape=(48,1)),
        "imbalance_price": gym.spaces.Box(low=-np.inf, high=np.inf, shape=(48,1)),
    }
)

action_space = gym.spaces.Dict(
    {
        "power_quantile_forecast": gym.spaces.Box(low=0, high=np.inf, shape=(48,9)),
        "power_bid": gym.spaces.Box(low=0, high=np.inf, shape=(48,1)),
    }
)

class HEFTCom2024Environment(gym.Env):

    def __init__(self,
                 dataset: ef.Dataset,
                 train_end: t.Optional[pd.Timestamp] = None,
                 time_lags: t.Optional[t.Dict[str, t.Union[int, None]]] = None,):

        self.time_space = time_space
        self.state_space = state_space
        self.exogeneous_space = exogeneous_space
        self.action_space = action_space

        self.data = dataset.data["data_heftcom2024"]
        self.portfolio = dataset.energy_system
        self.train_end = train_end if train_end is not None else self.data["market_day"].max()
        self.market_days = self.data['market_day'].unique()
        self.n_market_days = len(self.market_days)
        self.idx_first_eval_day = list(self.market_days > self.train_end).index(True)
        self.idx_counter = 0

    def reset(self, return_dataframe=False):
        self.idx_counter = 0
        initial_dataframe = self.data[self.data["market_day"] <= self.train_end]
        ref_times, states, exogenous = self._create_states(self.market_days[:self.idx_first_eval_day])

        if return_dataframe:
            return ref_times, states, exogenous, initial_dataframe
        else:
            return ref_times, states, exogenous

    def _create_state(self, idx_market_day):
        market_day_previous = self.market_days[idx_market_day-1]
        market_day = self.market_days[idx_market_day]

        market_day_start_previous = self.data[self.data["market_day"] == market_day_previous].index.get_level_values(1)[0]
        market_day_start = self.data[self.data["market_day"] == market_day].index.get_level_values(1)[0]

        ref_time = market_day.strftime('%Y-%m-%d')

        next_state = {
            "solar_power": self.data.loc[market_day_start_previous:market_day_start, ["Solar_MWh_credit"]].values,
            "solar_installed": self.data.loc[market_day_start_previous:market_day_start, ["Solar_installedcapacity_mwp"]].values,
            "solar_available": self.data.loc[market_day_start_previous:market_day_start, ["Solar_capacity_mwp"]].values,
            "solar_forecast": self.data[self.data["market_day"] == market_day][["SolarDownwardRadiation"]].values,
            "wind_power": self.data.loc[market_day_start_previous:market_day_start, ["Wind_MWh_credit"]].values,
            "wind_forecast": self.data[self.data["market_day"] == market_day][["WindSpeed"]].values,
            "dayahead_price": self.data.loc[market_day_start_previous:market_day_start, ["DA_Price"]].values,
            "imbalance_price": self.data.loc[market_day_start_previous:market_day_start, ["SS_Price"]].values
        }

        exogenous = {
            "dayahead_price": self.data[self.data["market_day"] == market_day][["DA_Price"]].values,
            "imbalance_price": self.data[self.data["market_day"] == market_day][["SS_Price"]].values,
        }

        return ref_time, next_state, exogenous

    def _create_states(self, market_days):
        ref_times = []
        states = []
        exogenous = []
        for idx in range(1, len(market_days)):
            ref_time, state, exog = self._create_state(idx)
            ref_times.append(ref_time)
            states.append(state)
            exogenous.append(exog)

        return ref_times, states, exogenous

    def step(self, action=None):
        idx_market_day = self.idx_first_eval_day+self.idx_counter
        ref_time, next_state, exogenous = self._create_state(idx_market_day)
        done = True if idx_market_day+1 == self.n_market_days else False
        self.idx_counter += 1

        return ref_time, next_state, exogenous, done

env = HEFTCom2024Environment(dataset=dataset,
                             train_end="2023-10-15")
ref_times, states, exogenous, initial_df = env.reset(return_dataframe=True)

Create Objective

from enflow.problems.objectives import PinballLoss
from enflow.problems.objectives import BaseScore

class MarketRevenue(BaseScore):

    def calculate(self, bid, production, day_ahead_price, single_system_price):
        revenue = bid * day_ahead_price + (production - bid) * (single_system_price - 0.07 * (production - bid))

        return revenue

Create Predictor

class Predictor(ef.Predictor):
        def __init__(self):
            self.model_name = "quantreg"
            self.quantiles = range(10,100,10)
            self.models = dict()

        def save_model(self, path: str):
            for quantile in self.quantiles:
                self.models[f"q{quantile}"].save(f"{path}/{self.model_name}_q{quantile}.pickle")

        def load_model(self, path: str):
            for quantile in self.quantiles:
                self.models[f"q{quantile}"] = load_pickle(f"{path}/{self.model_name}_q{quantile}.pickle")

        def train(self, X, y):
            train_data = {**X, **y}
            train_data = pd.DataFrame({k: v.squeeze() for k, v in train_data.items()})
            mod = smf.quantreg('total_generation_MWh ~ bs(solar_forecast,df=5) + bs(wind_forecast,df=8)',
                               data=train_data)

            for quantile in range(10,100,10):
                print(quantile)
                self.models[f"q{quantile}"] = mod.fit(q=quantile/100, max_iter=2500)

        def predict(self, X: dict) -> dict:
            X = pd.DataFrame({k: v.squeeze() for k, v in X.items()})

            prediction = pd.DataFrame()
            for quantile in range(10,100,10):
                prediction[f"q{quantile}"] = self.models[f"q{quantile}"].predict(X)
                prediction.loc[prediction[f"q{quantile}"] < 0, f"q{quantile}"] = 0

            return prediction.values

train_data = initial_df[["WindSpeed", "SolarDownwardRadiation", "total_generation_MWh"]].dropna()
X = {
    "solar_forecast": train_data["SolarDownwardRadiation"].values,
    "wind_forecast": train_data["WindSpeed"].values
}
y = {
    "total_generation_MWh": train_data["total_generation_MWh"].values
}

predictor = Predictor()
#predictor.train(X, y)
#predictor.save_model("models")
predictor.load_model("models")

y_true = y["total_generation_MWh"].reshape(-1,1)
y_preds = predictor.predict(X)

pinball = PinballLoss(quantiles=np.arange(0.1,1,0.1))
scores = pinball.score(y_true, y_preds)
scores

32.092224429059414

Create Agent

from enflow.problems.objectives import BaseScore

class MarketRevenue(BaseScore):

    def calculate(self, bid, production, day_ahead_price, single_system_price):
        revenue = bid * day_ahead_price + (production - bid) * (single_system_price - 0.07 * (production - bid))

        return revenue

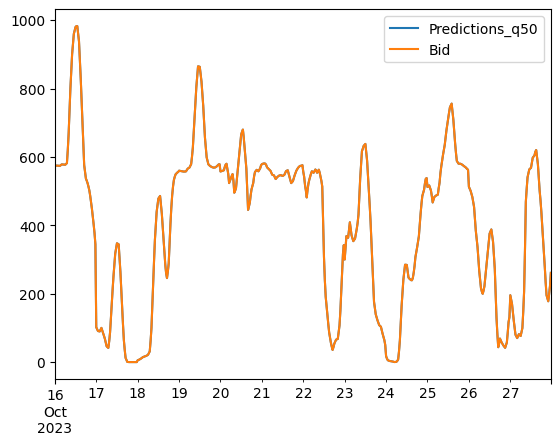

class Optimizer(ef.Optimizer):

    def optimize(self, prediction):
        bid = prediction[:,4].reshape(-1,1)

        return bid

optimizer = Optimizer()

class Agent(ef.Agent):

    def __init__(self, predictor, optimizer):
        self.predictor = predictor
        self.optimizer = optimizer

    def load_predictor(self, path: str):
        self.predictor.load_model(path)

    def train(self, X, y):
        self.predictor.train(X, y)

    def act(self, state):
        prediction = self.predictor.predict(state)
        bid = self.optimizer.optimize(prediction)
        action = {"power_quantile_forecast": prediction, "power_bid": bid}

        return action

initial_states = {
    "solar_forecast": initial_df["SolarDownwardRadiation"].values,
    "wind_forecast": initial_df["WindSpeed"].values
}
agent = Agent(predictor=predictor, optimizer=optimizer)
action = agent.act(initial_states)

scorer = MarketRevenue()
revenue = scorer.calculate(bid=action["power_bid"],
                           production=initial_df[["total_generation_MWh"]].values,
                           day_ahead_price=initial_df[["DA_Price"]].values,
                           single_system_price=initial_df[["SS_Price"]].values)
np.nansum(revenue)

2534482077.9752154

for i in range(9):
    initial_df.loc[:, f"Predictions_q{10*(i+1)}"] = action["power_quantile_forecast"][:,[i]]
initial_df.loc[:, "Bids"] = action["power_bid"]
initial_df.loc[:, "Revenue"] = revenue
initial_df.index = initial_df.index.droplevel(0)

initial_df

	WindSpeed	SolarDownwardRadiation	MIP	Solar_MW	Solar_capacity_mwp	Solar_installedcapacity_mwp	Wind_MW	SS_Price	boa_MWh	DA_Price	...	Predictions_q20	Predictions_q30	Predictions_q40	Predictions_q50	Predictions_q60	Predictions_q70	Predictions_q80	Predictions_q90	Bids	Revenue
valid_datetime
2020-09-20 23:00:00+00:00	5.825196	-0.001624	26.76	0.0	2108.444662	2206.067896	131.008	16.00000	0.0	33.30	...	37.189591	52.602142	66.968993	80.419721	95.607469	113.514992	138.769492	185.531116	80.419721	2423.751669
2020-09-20 23:30:00+00:00	5.601748	-0.004990	24.87	0.0	2108.444662	2206.067896	113.630	24.87000	0.0	33.30	...	31.212647	45.440970	58.946516	71.895678	86.142042	102.906343	126.432197	171.951934	71.895678	2003.149738
2020-09-21 00:00:00+00:00	5.378300	-0.008356	26.20	0.0	2108.444662	2206.067896	95.558	47.30000	0.0	31.02	...	25.626327	38.636333	51.282054	63.798042	77.194467	92.910992	114.863054	159.342024	63.798042	1203.351890
2020-09-21 00:30:00+00:00	5.161918	0.000241	29.27	0.0	2108.444662	2206.067896	75.574	29.27000	0.0	31.02	...	20.655625	32.460931	44.278910	56.398887	69.080706	83.845629	104.449515	147.932062	56.398887	1180.475379
2020-09-21 01:00:00+00:00	4.945536	0.008838	29.66	0.0	2108.444662	2206.067896	49.818	29.66000	0.0	30.03	...	16.180092	26.774801	37.749784	49.468942	61.474223	75.382278	94.782600	137.453701	49.468942	714.881095
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2023-10-15 20:30:00+00:00	10.973990	-0.006017	127.97	0.0	2332.037710	2487.180474	594.422	35.00000	0.0	105.46	...	336.709802	384.475883	419.608531	447.791603	473.342823	496.363486	522.909066	553.146818	447.791603	40366.565067
2023-10-15 21:00:00+00:00	10.713284	-0.012358	131.99	0.0	2332.037710	2487.180474	578.362	188.33001	0.0	105.25	...	314.445034	361.188391	396.432284	425.918531	453.224644	478.242510	508.093521	543.801611	425.918531	17767.344153
2023-10-15 21:30:00+00:00	10.453822	-0.006461	99.17	0.0	2332.037710	2487.180474	590.122	170.00000	0.0	105.25	...	291.533937	336.649465	371.658430	402.265137	431.315782	458.298024	491.614456	532.930841	402.265137	23309.211453
2023-10-15 22:00:00+00:00	10.194361	-0.000563	110.82	0.0	2332.037710	2487.180474	524.642	195.00000	0.0	103.25	...	268.265598	311.287853	345.746718	377.272451	407.921540	436.819809	473.585098	520.728865	377.272451	15612.879041
2023-10-15 22:30:00+00:00	9.863417	0.000624	102.93	0.0	2332.037710	2487.180474	468.762	195.00000	0.0	103.25	...	238.685050	278.568551	311.947690	344.293837	376.674832	407.816720	448.733842	503.187818	344.293837	13269.677237

53040 rows × 25 columns

fig = make_subplots(rows=4, cols=1, shared_xaxes=True, vertical_spacing=0.02)

# Add traces
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["total_generation_MWh"], mode='lines', name='Total Generation'), row=1, col=1)
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["Predictions_q50"], mode='lines', name='Prediction q50'), row=1, col=1)
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["DA_Price"], mode='lines', name='DA Prices'), row=2, col=1)
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["SS_Price"], mode='lines', name='IM Prices'), row=2, col=1)
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["Revenue"], mode='lines', name='Revenue'), row=3, col=1)
fig.add_trace(go.Scatter(x=initial_df.index, y=initial_df["Revenue"].cumsum()/initial_df["total_generation_MWh"].cumsum(), mode='lines', name='Cumulative Revenue'), row=4, col=1)

fig.update_layout(
    xaxis4=dict(
        rangeslider=dict(visible=True),
        type='date'
    ),
    height=500,
    legend=dict(orientation='h', x=0, y=1.1, xanchor='left', yanchor='bottom')
)
fig.show()
